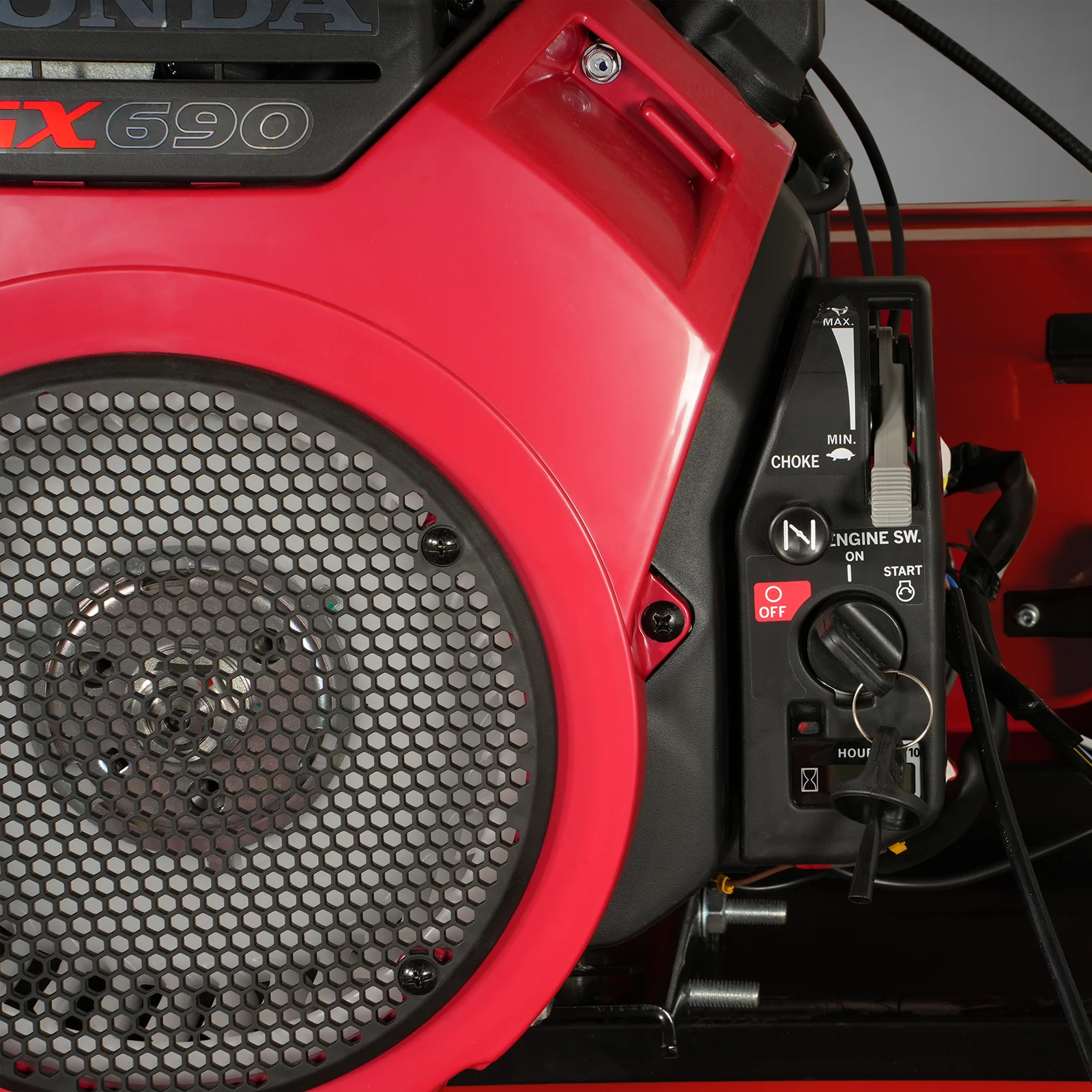

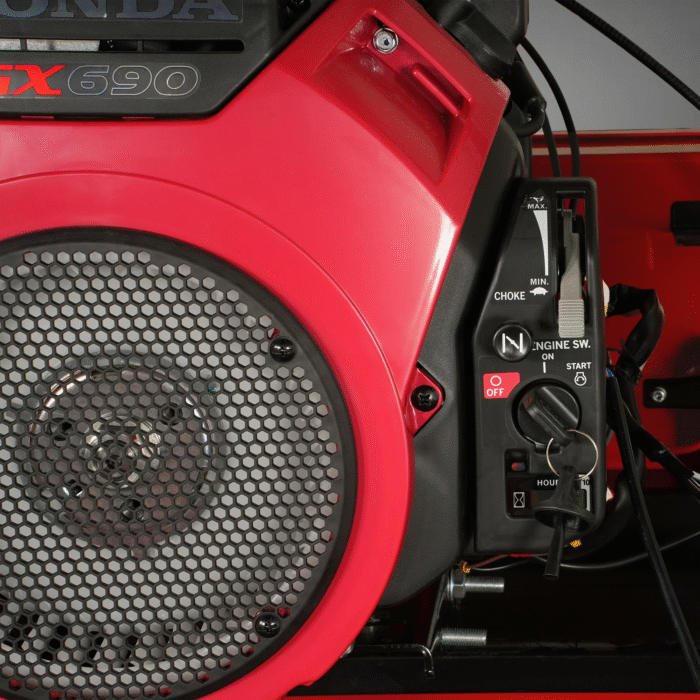

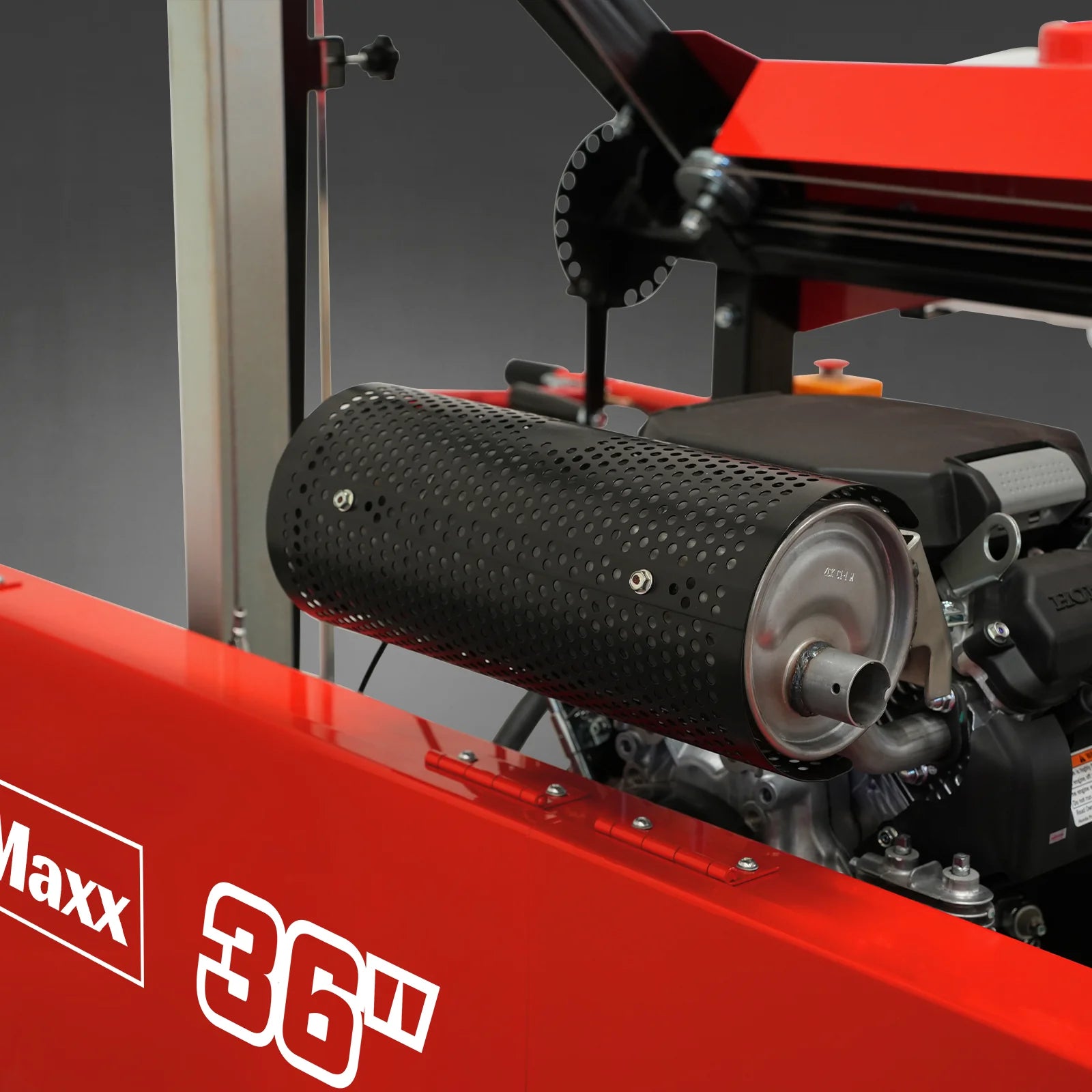

| Engine | HONDA GX690 | Lubricant Tank Size | 4gal |
| Engine Type | Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling | Fuel Tank Size | 6.3 gal |

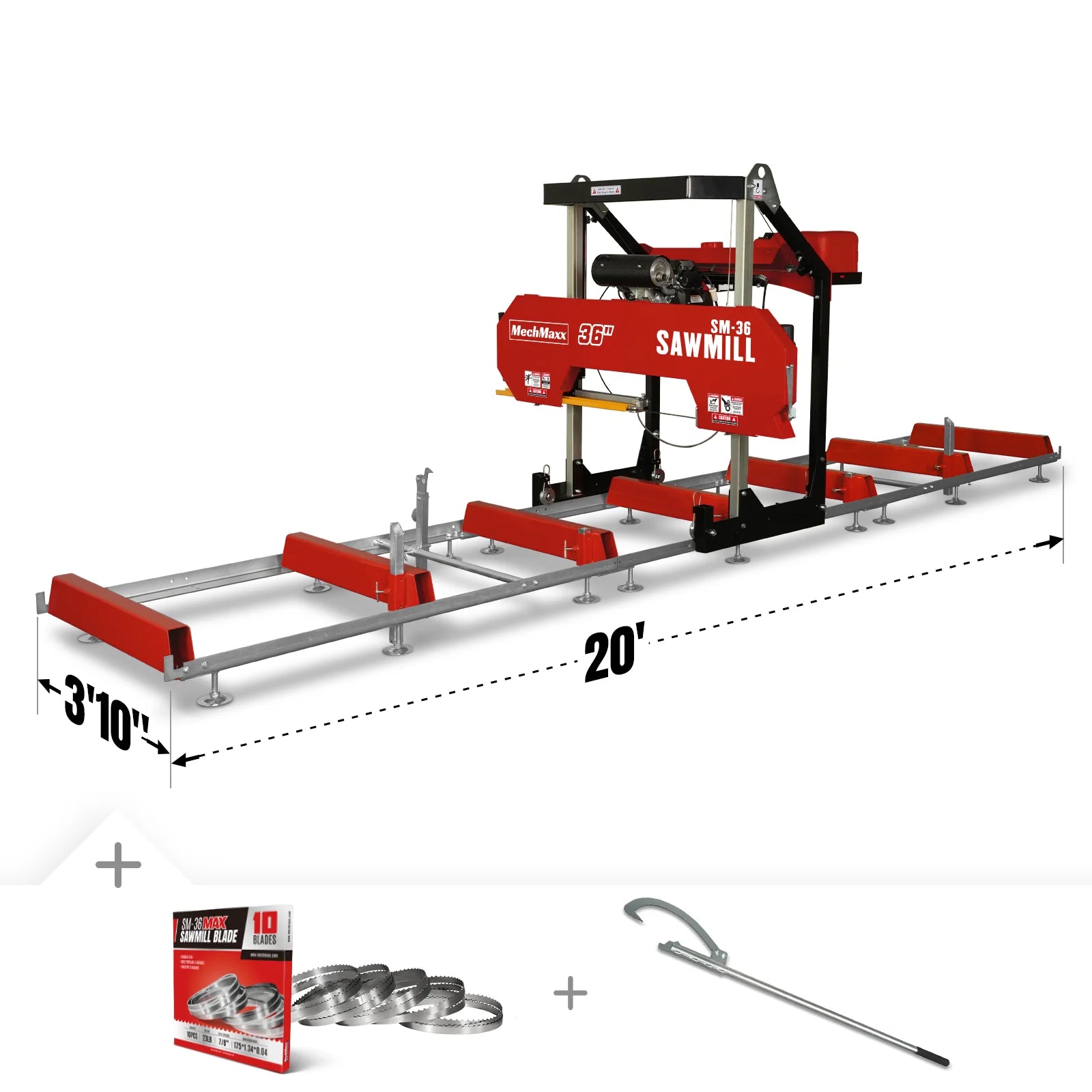

| Engine Displacement | 688 cc | Track Width | 3 ft 10 in |
| Horsepower | 25 HP | Track Length | 20 ft |
| Start | E-Start | Track Extension Length | 6 ft 5 in |
| Log Diameter | 36 in | Levelling Feet | 18 |

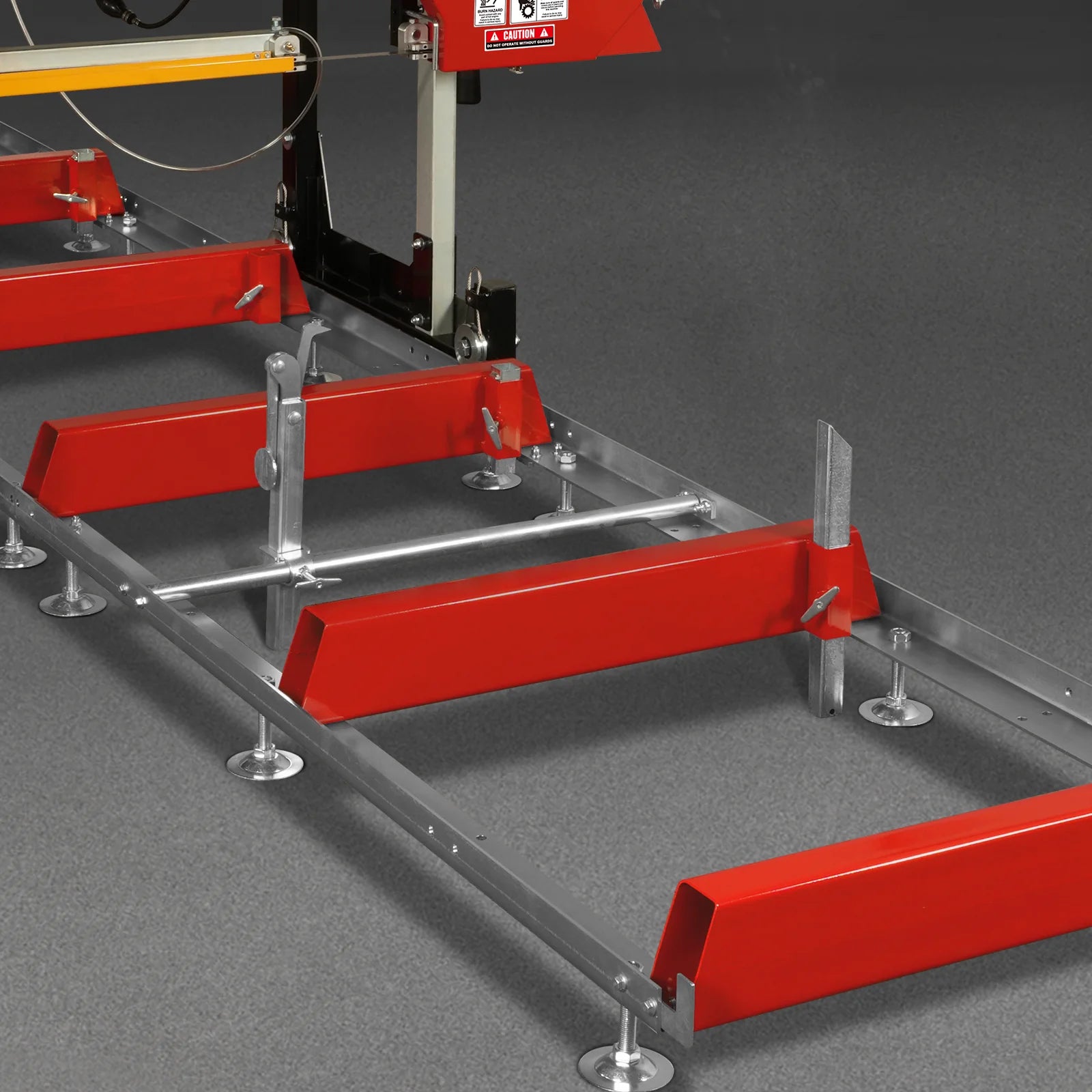

| Max Live Edge Width | 36 in | Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 16 ft 8 in | Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 7 in | Track Bunks | 3 x 6 in |
| Blade Engagement System | Centrifugal Clutch | 4 Post Head Design | Yes |

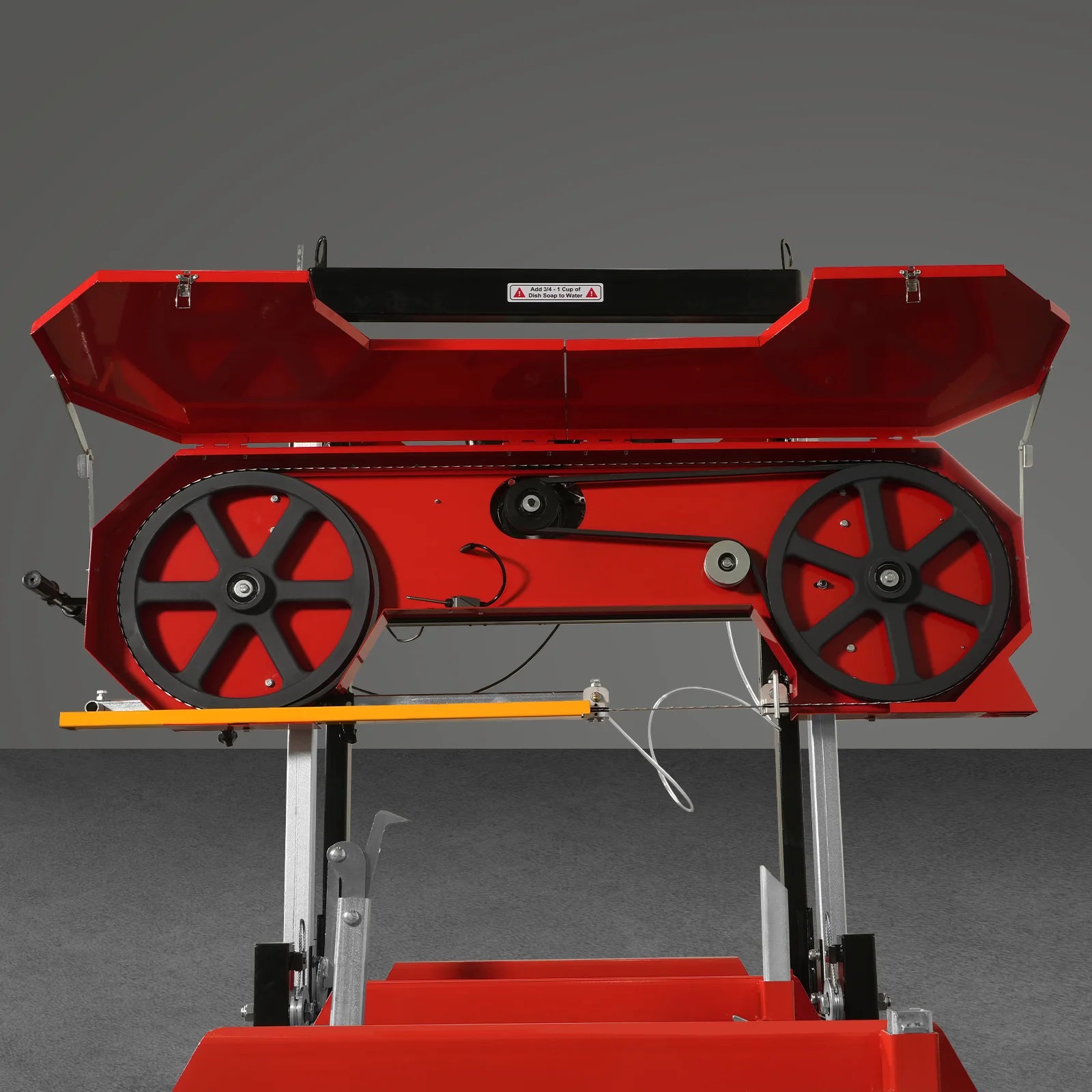

| Cast Iron Bandwheel Diameter | 19 in | Finish | Powder Coat Paint Galvanized Steel |

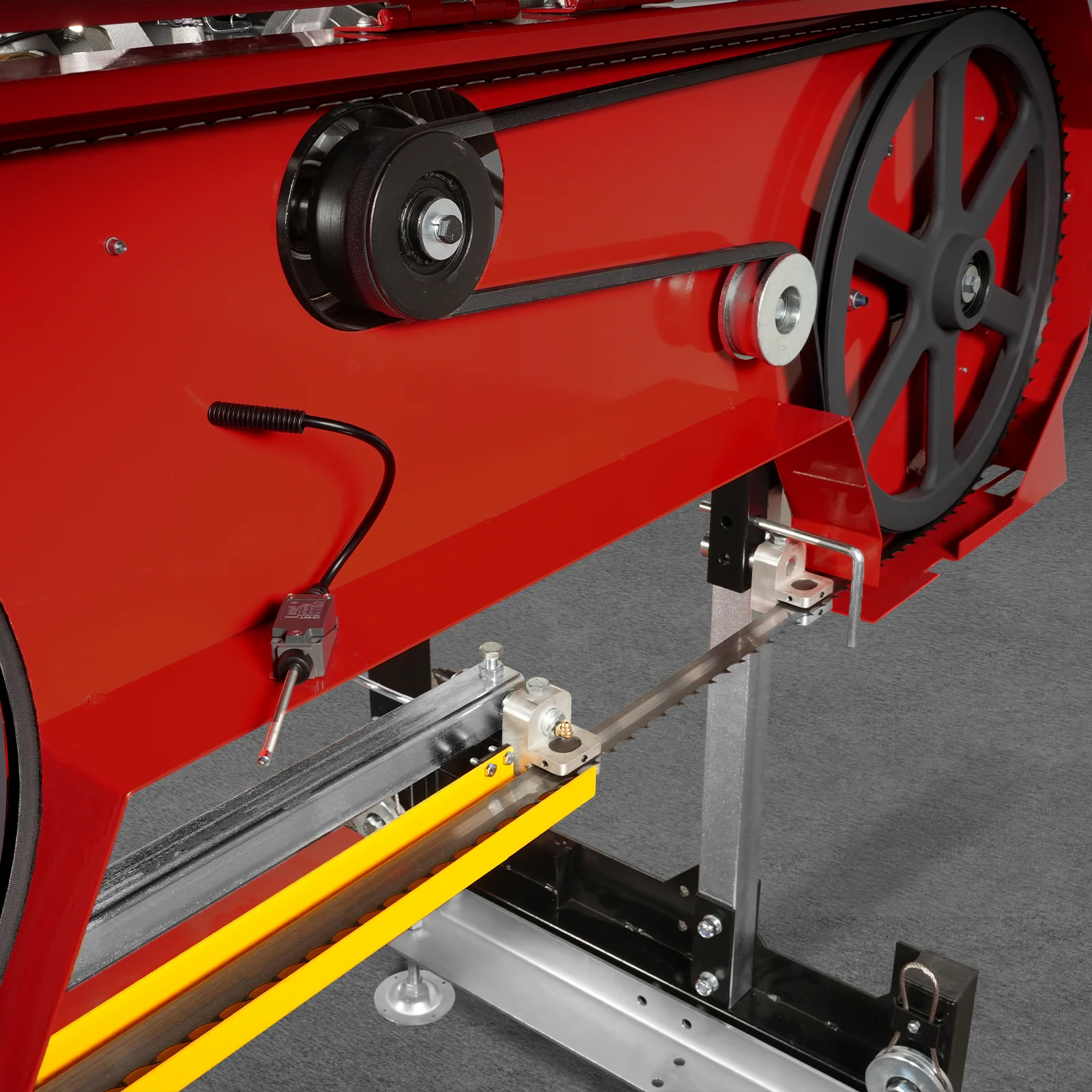

| Blade Wheel Engagement | Belt Drive | Sawmill Warranty | 2 Years |

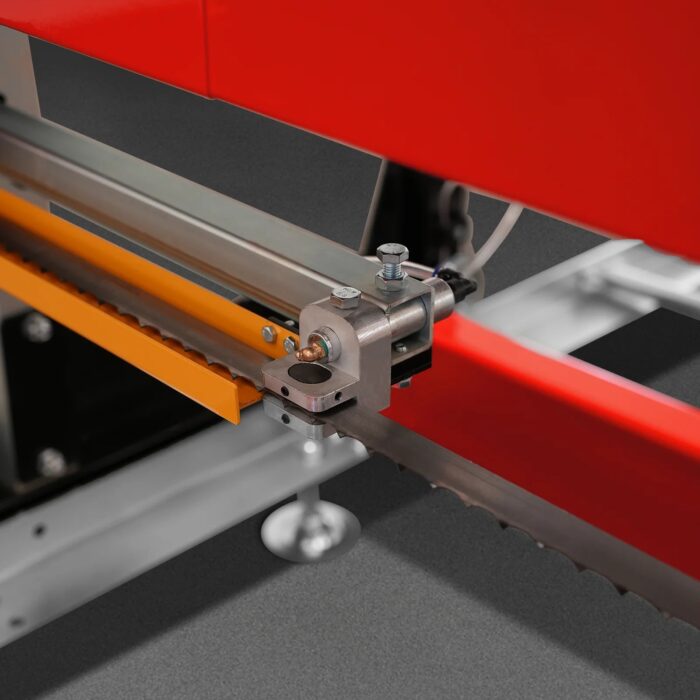

| Blade Guide | By Roller | Engine Warranty | 2 Years |

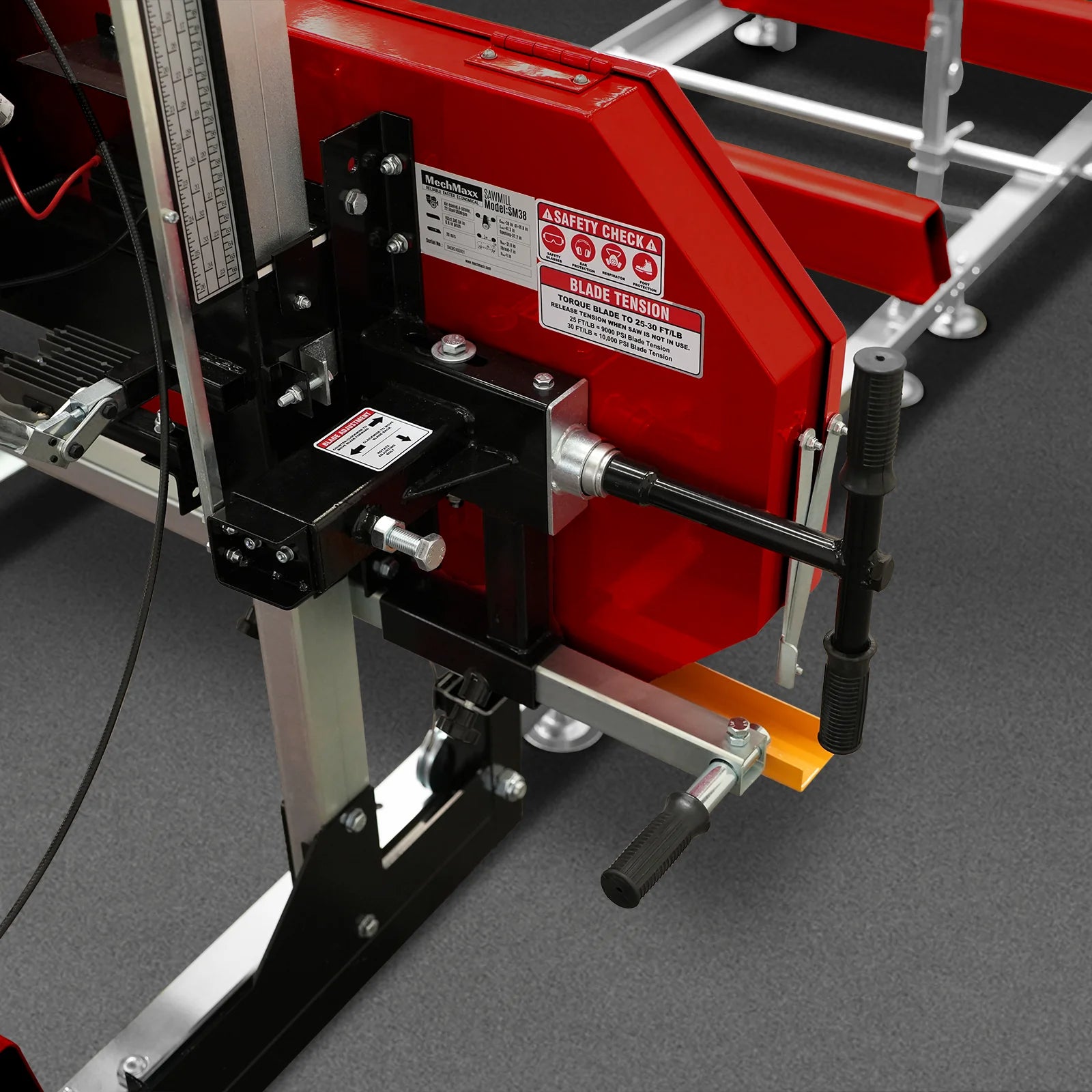

| Blade Tension | By Adjustable Lever | Package Method | Wood |
| Blade Size | 175 x 1.3 in | Packing Size | 90 x 28.5 x 34 in |
| Blade Pitch | 7/8 in | Weight(N.W./G.W.) | 1133/1257 lbs |
| Blade Lubrication | Water Lube – Manual Valve |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
