Compact Power for Tight Spaces

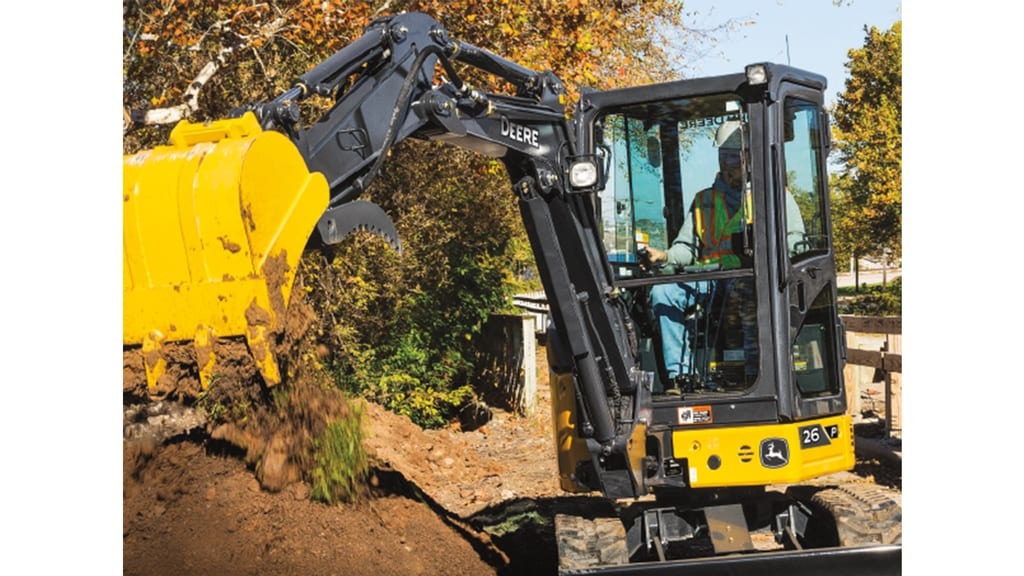

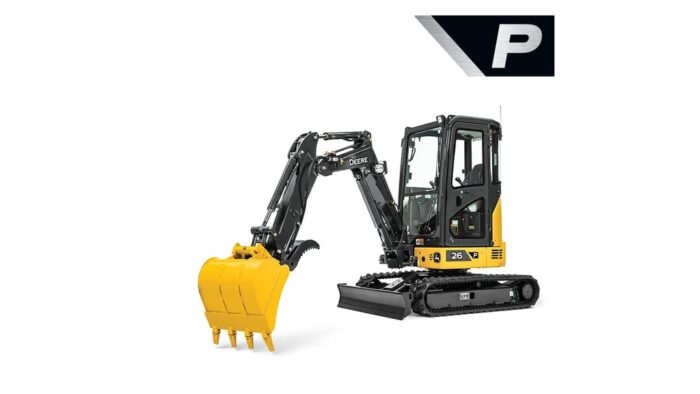

The John Deere 26 P-Tier Compact Excavator is a 2.7-metric ton machine designed for versatility and maneuverability in narrow workspaces. With a net power of 14.9 kW (20 hp) and a maximum digging depth of 2.59 m (8 ft. 6 in.), it’s ideal for a variety of tasks in confined areas.
Learn more about the John Deere 26 P-Tier Compact Excavator.
- Net Power: 14.9 kW (20 hp)
- Max. Digging Depth: 2.59 m (8 ft. 6 in.)
- Operating Weight: 2,770 kg (6,110 lb.)
Quick Attachment Changes
The 26 P-Tier features a mechanical quick coupler system, allowing for rapid attachment changes with minimal downtime. The auxiliary selector valve enables quick switching between one-way and two-way hydraulic flows, enhancing versatility on the job site.
Standard Backfill Blade
Equipped with a standard backfill blade, the 26 P-Tier enhances productivity by enabling operators to level and backfill trenches efficiently. The blade’s width matches the undercarriage, providing stability when using attachments or working on uneven terrain.
Spacious Operator Station
The operator station boasts a wide entryway and backhoe-to-excavator-style controls, offering comfort and ease of use. The optional four-season cab features expansive front glass for exceptional visibility, and an adjustable work light increases job efficiency during nighttime operations.
Engine
Engine Manufacturer: Yanmar
Number of Cylinders: 3
Displacement: 1.27 L (77 in³)
Rated Speed: 2,500 rpm
Net Power: 14.9 kW (20 hp)
Performance
Max. Digging Depth: 2.59 m (8 ft. 6 in.)
Max. Digging Reach: 4.63 m (15 ft. 2 in.)
Operating Weight: 2,770 kg (6,110 lb.)
Dimensions
Transport Length: 4,180 mm (13 ft. 9 in.)
Transport Height: 2,430 mm (8 ft. 0 in.)
Overall Undercarriage Width: 1,500 mm (4 ft. 11 in.)
Track Length on Ground: 1,530 mm (5 ft. 0 in.)
Ground Clearance: 300 mm (12 in.)
Tail Swing Radius: 800 mm (2 ft. 7 in.)
Hydraulics
Hydraulic Tank Capacity: 23.85 L (6.3 gal.)
Fuel Tank Capacity: 34.07 L (9.0 gal.)
Additional Features
Control Pattern Selector: Conveniently located beneath the seat with a sight glass displaying the selected pattern.
Track Speed Control: Automatically adjusts track speeds to low when encountering heavier loads, returning to high when the load normalizes, without pedal or operator activation.
Maintenance Access: Hinged door provides wide-open access to the side-by-side oil cooler and radiator, designed to resist trash buildup and allow quick and easy core cleanout.
