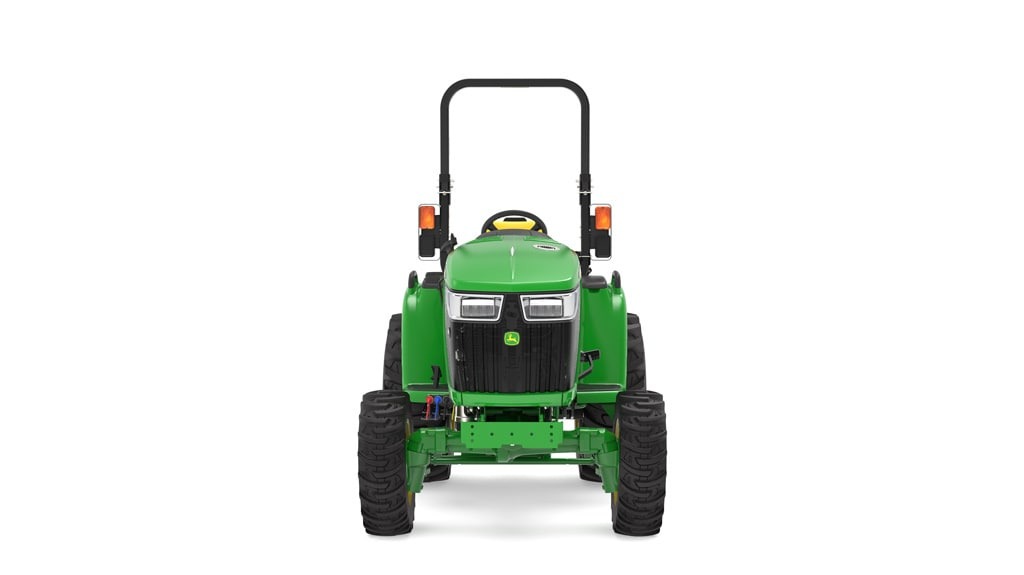

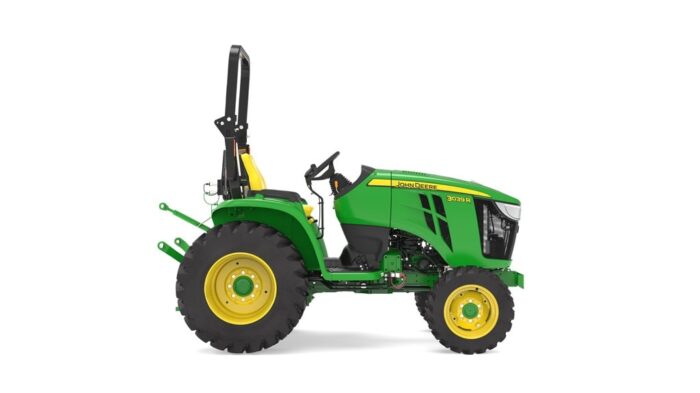

Name: John Deere 3039R Compact Utility Tractor
Brand: John Deere
SKU: 15119
Availability: InStock

Description

Versatile Power for Diverse Tasks

The John Deere 3039R Compact Utility Tractor combines power and versatility, making it ideal for a range of tasks from landscaping to farming. With a 38.2 hp Yanmar diesel engine and options for PowrReverser™ or eHydro™ transmissions, it offers both strength and precision.

Learn more about the John Deere 3039R Compact Utility Tractor.

Engine Power: 28.5 kW (38.2 hp)
Transmission Options: PowrReverser™ or eHydro™
Lift Capacity: 995 kg (2,194 lb.)
Hydraulic Flow: 57.8 L/min (15.3 gpm)

Powerful Yanmar Engine

The 3039R is equipped with a 1.57 L turbocharged Yanmar diesel engine, delivering 38.2 hp and meeting Final Tier 4 emissions standards. This engine ensures reliable performance and fuel efficiency.

Advanced Transmission Options

Choose between the 12F/12R PowrReverser™ transmission for manual control or the eHydro™ transmission for seamless operation with cruise control. Both options provide smooth and efficient power delivery.

Robust Hydraulic System

The open-center hydraulic system offers a total flow of 57.8 L/min (15.3 gpm), ensuring responsive implement performance. Up to six rear remote valves are available for versatile implement control.

Operator Comfort

The spacious operator station features a foldable ROPS, ergonomic controls, and an optional deluxe cab with heat and air conditioning, enhancing comfort during long working hours.

Engine

Manufacturer: Yanmar

Model: 3TNV86CT-MJT

Displacement: 1.57 L (95.7 cu in.)

Gross Power: 28.5 kW (38.2 hp) at 2600 rpm

Torque: 105 Nm (77.4 lb-ft) at rated speed

Emissions Compliance: Final Tier 4

Transmission

Options: 12F/12R PowrReverser™ or eHydro™

Cruise Control: Standard on eHydro™, not available on PowrReverser™

Clutch: Wet disk (PowrReverser™)

Hydraulics

Type: Open center

Total Flow: 57.8 L/min (15.3 gpm)

Implement Flow: 34.3 L/min (9.1 gpm)

Steering Flow: 23.5 L/min (6.2 gpm)

Maximum Operating Pressure: 172 bar (2495 psi)

3-Point Hitch

Type: Category 1

Lift Capacity at 24 in. behind link arms: 995 kg (2,194 lb.)

Power Take-Off (PTO)

Rear PTO: Independent, 540 rpm

Mid PTO (eHydro™ only): 2100 rpm

Clutch: Wet disk

Dimensions and Capacities

Wheelbase: 1727 mm (68 in.)

Fuel Tank Capacity: OOS: 37.4 L (10 U.S. gal.), Cab: 47.6 L (12.6 U.S. gal.)

Shipping Weight: OOS PowrReverser™: 1363 kg (3005 lb.), OOS eHydro™: 1382 kg (3047 lb.), Cab eHydro™: 1676 kg (3695 lb.)
